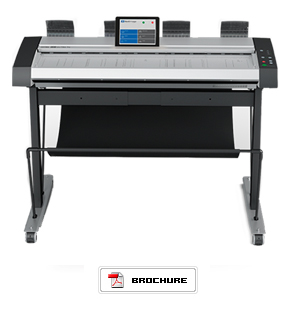

HD ULTRA X 6050 |
HD ULTRA X 6090 |
HD ULTRA X 4250 |
HD ULTRA X 4290 |
HD ULTRA X 3650 |
HD ULTRA X 3690 |
Maximum Scan Width |
60 inches (1524mm) |
42 inches (1067mm) |
36 inches (914mm) |
Working height |
36.3 / 37.3 / 38.3 inches (922 / 947 / 972mm) |
SCANNING SPEED2 (INCH/SEC.) At maximum scan width of scanner |
200 dpi RGB Color |
8.9 |
17.8 |
17.8 |
17.8 |
17.8 |
17.8 |
200 dpi Grayscale / Monochrome |
17.8 |
17.8 |
17.8 |
17.8 |
17.8 |
17.8 |
PRODUCTIVITY (DOCUMENTS/HOUR) Batch scanning for 60 minutes.
Includes paper load and eject time. Measured in completed scans |
Arch E-size, Portrait Monochrome/RGB Color, 200dpi |
519 |
875 |
519 |
875 |
519 |
875 |
Arch E-size, Landscape Monochrome/RGB Color, 200dpi |
642 |
1055 |
|
|
|
|
A0-size, Portrait Monochrome/RGB Color, 200dpi |
537 |
903 |
537 |
903 |
537 |
903 |
A0-size, Landscape Monochrome/RGB Color, 200dpi |
693 |
1057 |
|
|
|
|
Maximum Media Width |
61.8 inches (1570mm) |
43.3 inches (1100mm) |
Optical Resolution |
1200 dpi |
Maximum Resolution |
9600 dpi |
CCD Cameras |
7 x 4 linear color CCDs
(RGB and Gray) |
5 x 4 linear color CCDs
(RGB and Gray) |
Depth of focus |
0.3 inches (7mm) |
Maximum Media Thickness |
0.6 inches (15mm) |
Total number of pixels |
299040 pixels |
213600 pixels |
Accuracy |
0.1% +/- 1 pixel |
Data Capture (color/mono) |
48-bit color / 16-bit grey scale |
Color Space |
Adobe RGB / Device RGB / RAW RGB / sRGB |
Network workflow |
Pull / Push |
Software3 |
WIDEsystem (driver), Nextimage 5, iOS app (portable device), Android tablet/phone OS also |
PC Recommended? Specification |
Intel Core Duo, Core 2 Duo, or better processors, 8GB RAM |
Device Drivers |
64-bit Windows 10, 8, Windows 7 |
Nextimage TWAIN |
64-bit TWAIN application driver included for use with EDM and other imaging software |
File formats |
Big TIFF, TIF, JPG, PDF, PDF/A, DWF, CALS, BMP, JPEG-2000(JP2), JPEG2000 Extended(JPX), TIF-G3, TIF-G4,
multi-page PDF and others |
Power Requirements |
100-240V, 60/50Hz, 80W |
Scanner Weight & Dimensions |
62.5 kgs (173.8 lbs) / LxWxH: 1810mm (71’’) x 540mm (21’’) x 279mm (11’’) |
49.3 kgs (109 lbs)
LxWxH: 1360mm (53.6’’) x 540mm (21’’) x 279mm (11’’) |
